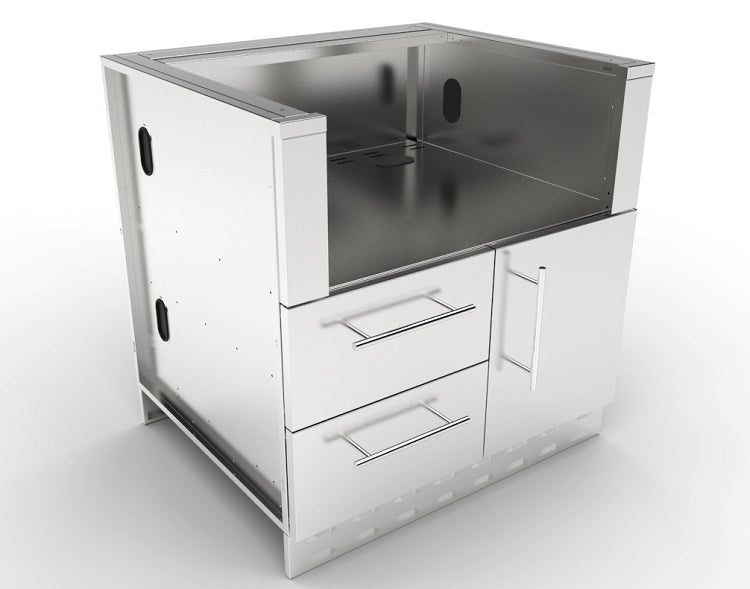

The 34" Sunstone Charcoal Grill Base Cabinet is entirely built with 304 Stainless Steel 16 & 18 Gauge Material Grades, and is uniquely designed to receive multiple Charcoal/Gas/Hybrid Grill Brand Models right out of the box and with easy installation with simple Pin-Lock installation - No Tools Required. The cabinet comes standard with a Right Side Door Enclosure with interior bottom Tray-Drawer for use as a Charcoal or Wood Chip Bag Storage or Trash Bin, (Propane Tank Will Not Fit here, see SBC18SLPCD, to place to side of this cabinet if grill requires Propane Tank.).

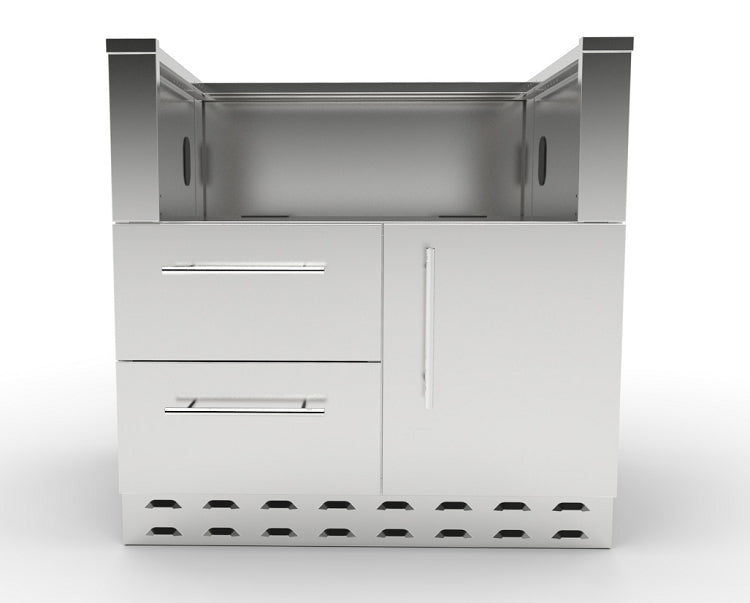

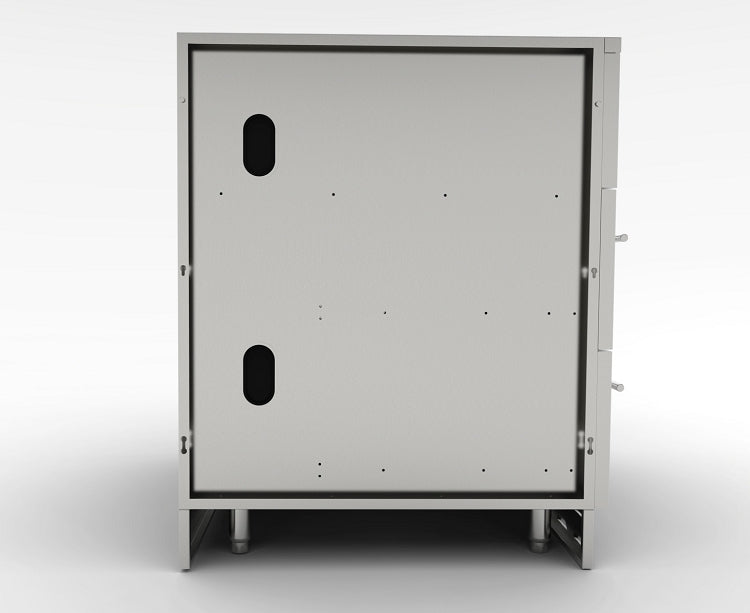

The Left side has Two Large Drawers with Ample Storage Space for all your BBQ Utensils, Rubs and Sauces. Included is the Removable Top Counter Rail, allowing you to make your counter as either Standard Bevel Edge or when removed make counter a Full Bull-nose edge. The cabinet is Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates. For easy utility installation there are multiple access ports, covered by black Snap-in plastic covers which allows unit to stay as tightly sealed as possible without compromising integrity of the cabinet

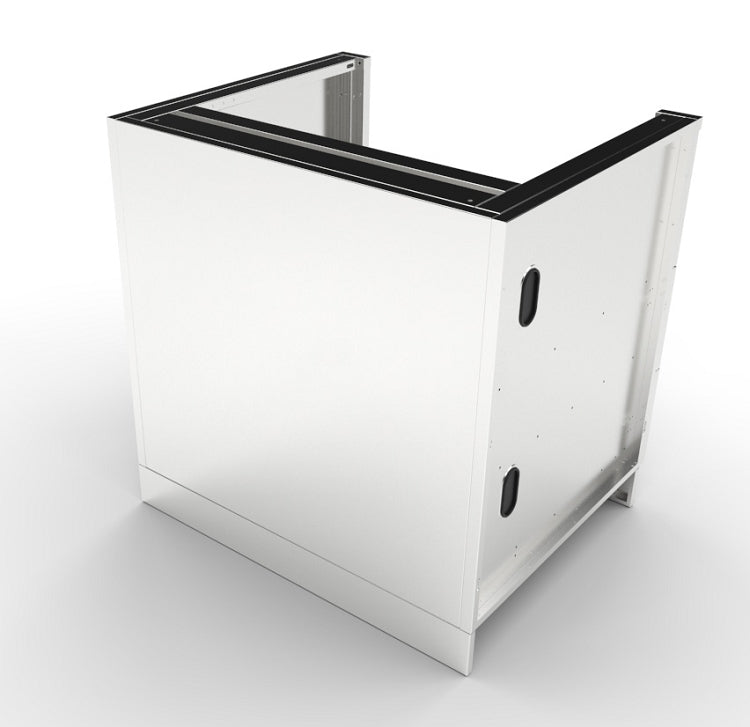

DOES NOT INCLUDE SIDE PANELS & SIDE KICK PLATES
Included Components
Front Vented Kick Plate - Back Solid Kick Plate
(4) Adjustable Peg Legs - Trim-Kit – SCC34CTK3.75
Dimensions
34"W x 28-1/4"D x 34-1/2"H (w/Legs)
34"W x 28-1/4"D x 30-1/2"H (without Legs)
36" Max Adjustable Height
Net Weight 136.4 LBS
- 304 SS Rod Handles
- 304 Stainless Steel Structure
- 4 Adjustable Peg-Legs
- Covered Access Ports
- Easy Pin-Lock Installation
- Front Vented Kick-Plate
- Lifetime Structure Warranty
- Optional Wheel Casters
- Rear Solid Kick-Plate
- Removable Counter Rail
- Replaceable Face Panel
- Soft-Close Drawer Tracks
AC34CGDC TRIM-KIT | ||
---|---|---|
Model Number | Sleeve Cut-Out | Product Option |
SCC34CTK2.5 | 28-1/2" W x 12-3/4" H x 24-1/2" Maximum Depth | PCM® 30" Charcoal, Twin Eagles® 30"Charcoal, Vintage® 30" Charcoal |
SC34CTK3.25 | 27-1/2" W x 13-3/4" H x 24-1/2" Maximum Depth | |
SCC34CTK3.75 | 26-3/8" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x24-1/2" Maximum Depth | Sunstone® 28" Charcoal, Fire Magic® Aurora® Grill |
SCC34CTK4.5 | 25" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth | |
SCC34CTK5 | 23-7/8" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth |
LIMITED LIFETIME WARRANTY Stainless Steel, to be from defects in material and workmanship when subjected to normal domestic use and service for the lifetime of the original purchaser. This warranty does not include discoloration, surface corrosion, and scratches which may occur during regular use. LIMITED FIVE-YEAR WARRANTY All other components including Rod Handles, Peg Legs, Kick Plates, End Panels, and Spacer Panels are warranted to be free from defects in material and workmanship for a period of five years from the original date of purchase.
