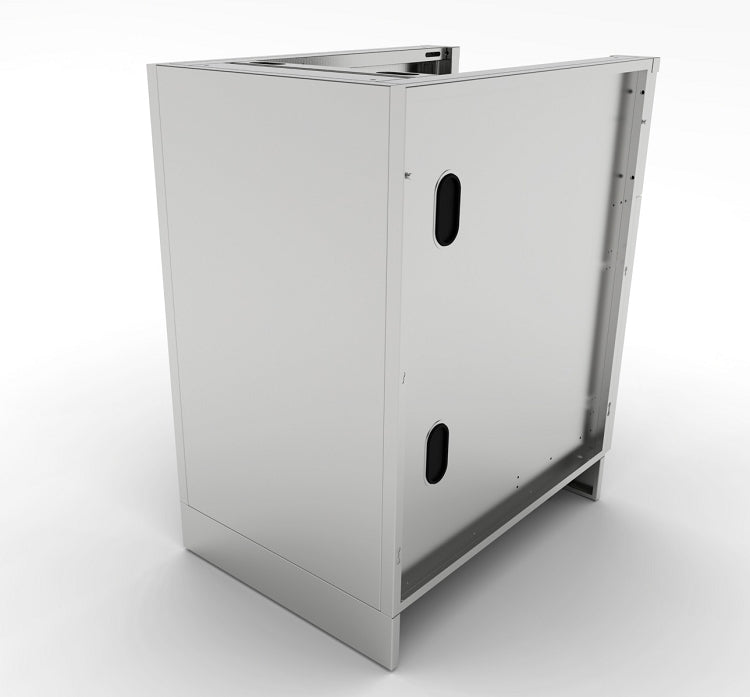

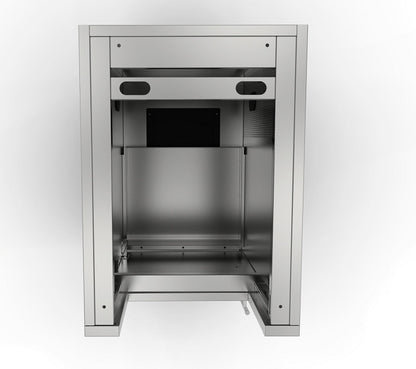

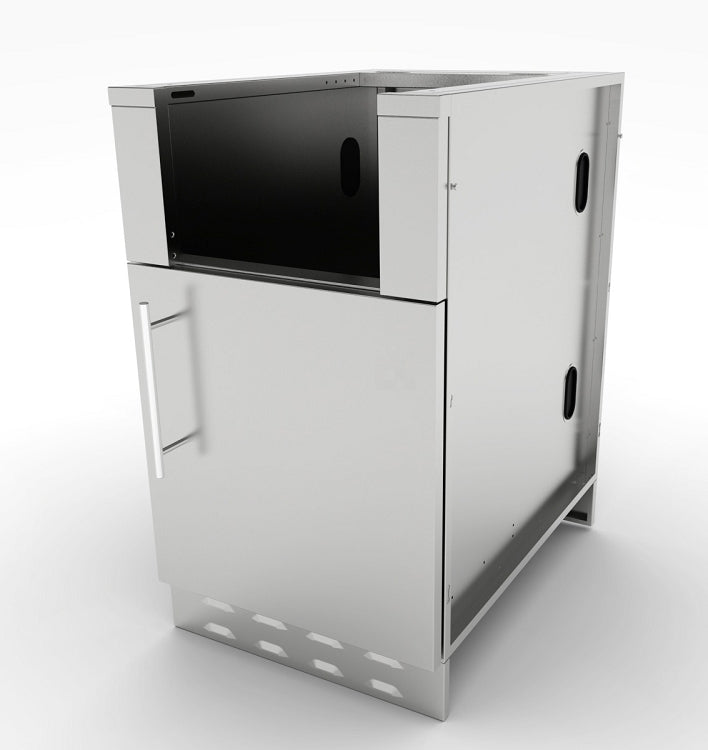

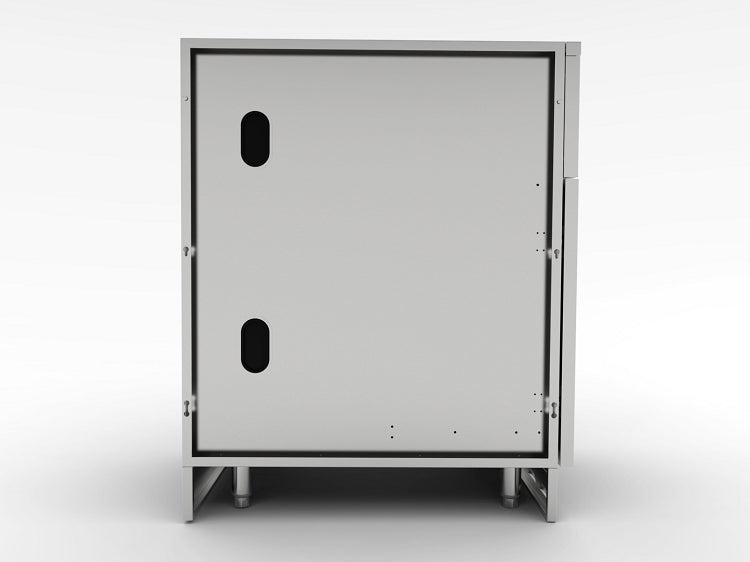

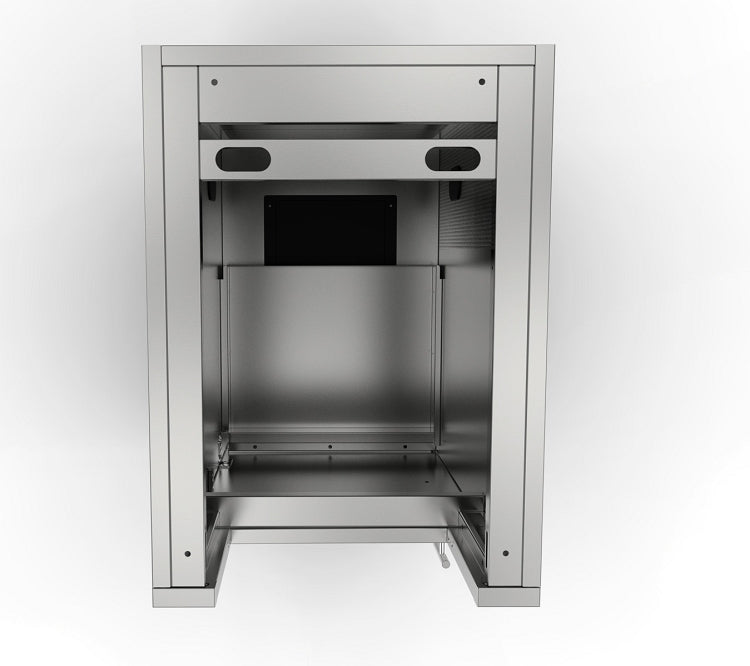

The Sunstone 20 Inch Appliance Base Cabinet SAC20CSDR is constructed entirely of 16 & 18 Gauge Stainless Steel Material Grades, and is uniquely designed to receive multiple types of gas double side burners or for use with many slide-in cocktail bar stations right out of the box and with easy installation with simple Pin-Lock installation - No Tools Required. The cabinet comes standard with a Single Right Door Enclosure with interior bottom Tray-Drawer for use with a Propane Tank or Trash Bin. Included is the Removable Top Counter Rail, allowing you to make your counter as either Standard Bevel Edge or when removed make counter a Full Bull-nose edge.
The cabinet is Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates. For easy utility installation there are multiple side and one large single bottom access port, covered by black Snap-in plastic covers which allows unit to stay as tightly sealed as possible without compromising integrity of the cabinet.
DOES NOT INCLUDE SIDE PANELS & SIDE KICK PLATES
Included Components
Front Vented Kick Plate - Back Solid Kick Plate
(4) Adjustable Peg Legs - Trim-Kit – SCC46CTK3.25
Dimensions
20"W x 28-1/4"D (w/Doors) x 34-1/2"H (w/Legs)
20"W x 28-1/4"D (w/Doors) x 30-1/2" (without Legs)
36" Max Adjustable Height
Net Weight 71.5 LBS
- 304 SS Rod Handles
- 304 Stainless Steel Structure
- 4 Adjustable Peg-Legs
- Covered Access Ports
- Easy Pin-Lock Installation
- Front Vented Kick-Plate
- Lifetime Structure Warranty
- Optional Wheel Casters
- Rear Solid Kick-Plate
- Removable Counter Rail
- Replaceable Face Panel
SAC20CSDR TRIM-KIT | ||
---|---|---|
Model Number | Sleeve Cut-Out | Product Option |
SCC20CTK2.5 | 14-1/2" Width x 10-1/4" Height x 24-1/2" Maximum Depth | |
SCC20CTK3.25 | 13-1/2" Width x 10-1/4" Height x 24-1/2" Maximum Depth | Sunstone® Cocktail Station, Sunstone® Cocktail Pro, Alfresco® Double Burner |
SCC20CTK3.75 | 12-3/8" Width x 8" Height w/Rail or | Sunstone® Double Burner, Double Burners for - RCS®, Lynx®,DCS®, Alfresco®, Luxor®, Cal-Flame® Double Burner, Cal-Flame® Cocktail Center, Coyote® Double Burner |
SCC20CTK4.5 | 11" Width x 8" Height w/Rail or 10-1/4" Height wo/Rail x 24-1/2" Maximum Depth | Steele® Side Burner |
SCC20CTK5 | 9-3/4" Width x 8" Height w/Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth |
20” Appliance Cabinet w/Left Swing door for Item No.2CSB | Insertable Products | Package Size |
---|---|---|
20"W x 28-1/4"D (w/Doors) x 34-1/2"H (w/Legs) | Double Side Burner -2CSB | 23"W x 31" L x 33" H |
20"W x 28-1/4"D (w/Doors) x 30-1/2" (without Legs) | Cocktail Pro- B-CS14 | 81LBS |
Upto 36" Max Adjustable Height | Cocktail Stations- A-CS14 | |
Net Weight 71.5 LBS | ||
Download Spec.Sheet for SAC20CSDR |
LIMITED LIFETIME WARRANTY Stainless Steel, to be from defects in material and workmanship when subjected to normal domestic use and service for the lifetime of the original purchaser. This warranty does not include discoloration, surface corrosion, and scratches which may occur during regular use. LIMITED FIVE-YEAR WARRANTY All other components including Rod Handles, Peg Legs, Kick Plates, End Panels, and Spacer Panels are warranted to be free from defects in material and workmanship for a period of five years from the original date of purchase.
